hexagon slotted nut
Hex Slotted nut
Keyword:
hex nut
hex slotted nut
Classify:
Product introduction

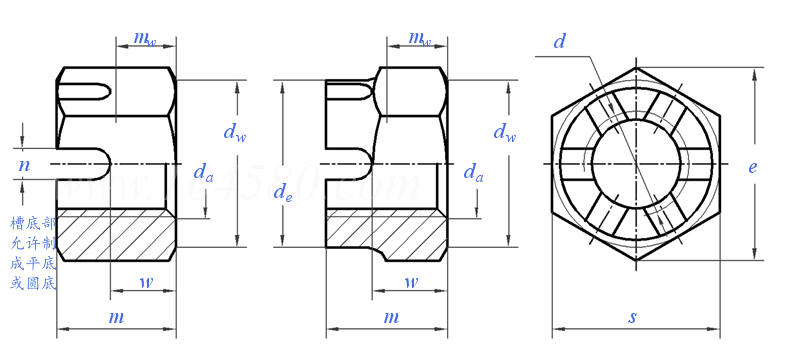

螺纹尺寸
d
| M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 |
| P | ||
| de | ||
| e | ||
| m | ||
| n | ||
| s | ||
| w | ||
| da | ||
| dw | ||
| mw | ||
| 千件重(钢制)≈kg | ||
| 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | 2 | 2 | 2 | 3 |
| / | （1.25） | （1.25） | / | / | / | （1.5） | / | / | / | / | / | / |
| / | / | / | / | / | 25 | 28 | 30 | 34 | 38 | 42 | 46 | 50 |
| / | / | / | / | / | 24.16 | 27.16 | 29.16 | 33 | 37 | 41 | 45 | 49 |
| 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 |
| 9.8 | 12.4 | 15.8 | 17.8 | 20.8 | 21.8 | 24 | 27.4 | 29.5 | 31.8 | 34.6 | 37.7 | 40 |
| 9.44 | 11.97 | 15.37 | 17.37 | 20.28 | 20.96 | 23.16 | 26.56 | 28.66 | 30.8 | 33.6 | 36.7 | 39 |
| 3.1 | 3.4 | 4.25 | 4.25 | 5.7 | 5.7 | 5.7 | 6.7 | 6.7 | 6.7 | 8.5 | 8.5 | 8.5 |
| 2.5 | 2.8 | 3.5 | 3.5 | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 5.5 | 7 | 7 | 7 |
| 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 |
| 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 |
| 6.8 | 8.4 | 10.8 | 12.8 | 14.8 | 15.8 | 18 | 19.4 | 21.5 | 23.8 | 25.6 | 28.7 | 31 |
| 6.44 | 8.04 | 10.37 | 12.37 | 14.37 | 15.1 | 17.3 | 18.56 | 20.66 | 22.96 | 24.76 | 27.86 | 30 |
| 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | 21.6 | 23.7 | 25.9 | 29.1 | 32.4 | 35.6 | 38.9 |
| 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 |
| 11.6 | 14.6 | 16.6 | 19.6 | 22.5 | 24.8 | 27.7 | 31.4 | 33.2 | 38 | 42.7 | 46.6 | 51.1 |
| 5.15 | 6.43 | 8.3 | 9.68 | 11.28 | 12.08 | 13.52 | 14.85 | 16.16 | 18.37 | 19.44 | 22.16 | 23.52 |
| 5.21 | 10.34 | 15.34 | 24.87 | 36.94 | 46.15 | 64.99 | 97.04 | 114.7 | 168.1 | 233.2 | 302 | 394.3 |
