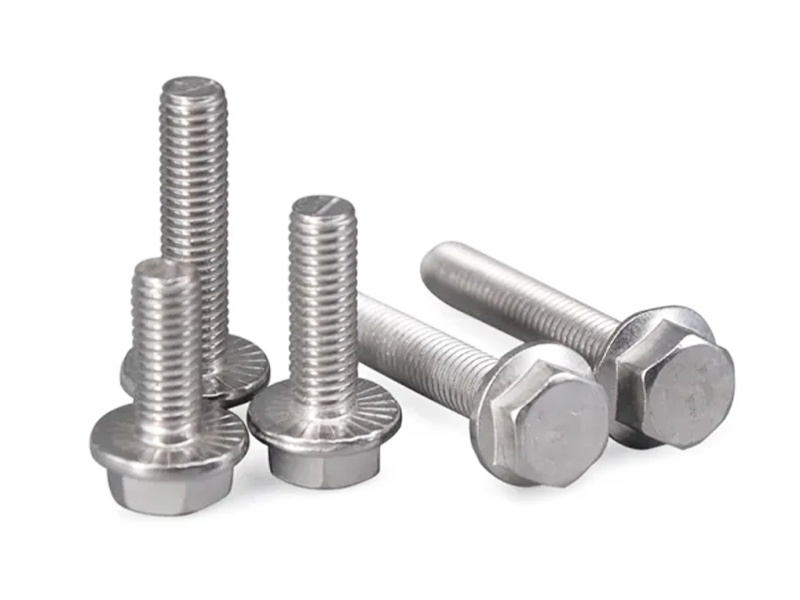

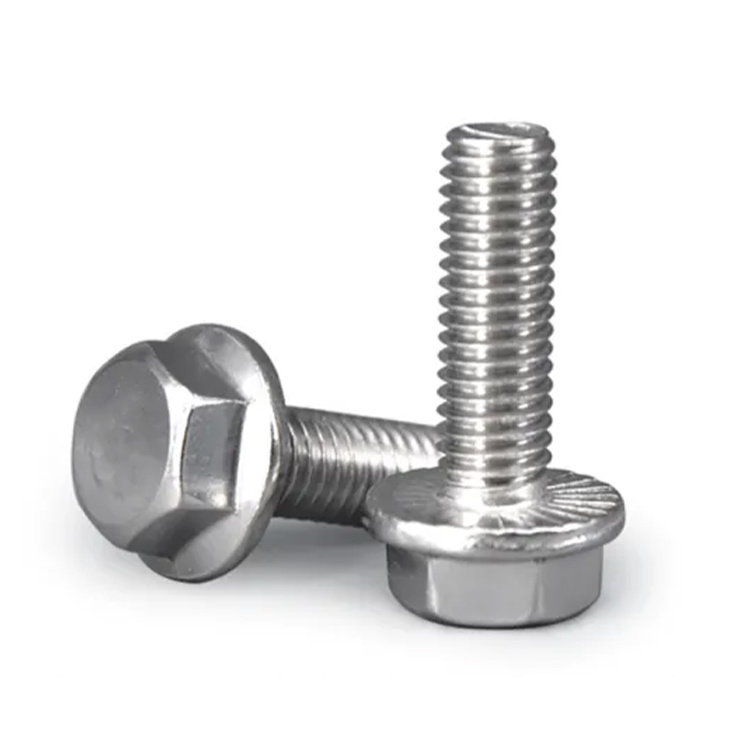

Hex flange bolts Hex flange bolts Hex flange bolts

Hex flange bolts

Hex flange bolts

Keyword:

Hex flange bolts bolt screw hex bolt hex screw

Classify:

Hex flange bolts

Hotline：

+86 18865953895

Product consultation
Related products

Product introduction

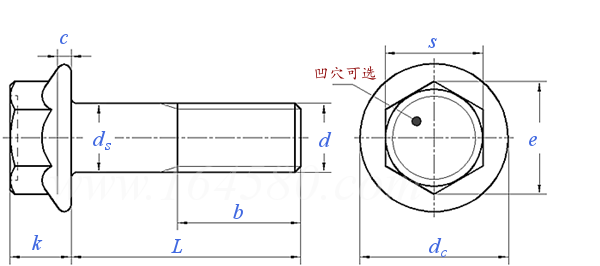

螺纹尺寸
d
M5 M6 M8 M10 M12 M14 M16
P 螺距
ds 最大值
最小值
s 最大值
最小值
e 最大值
最小值
dc 最大值
c 最小值
k 最大值
b L≤125
125＜L≤200
L＞200
0.80 1.00 1.25 1.50 1.75 2.00 2.00
5.00 6.00 8.00 10.00 12.00 14.00 16.00
4.82 5.82 7.78 9.78 11.73 13.73 15.73
7.00 8.00 10.00 13.00 15.00 18.00 21.00
6.64 7.64 9.64 12.57 14.57 17.57 20.16
8.08 9.24 11.55 15.01 17.32 20.78 24.25
7.44 8.56 10.80 14.08 16.32 19.68 22.58
11.4 13.6 17.0 20.8 24.7 28.6 32.8
1.0 1.1 1.2 1.5 1.8 2.1 2.4
5.6 6.9 8.5 9.7 12.1 12.9 15.2
16.0 18.0 22.0 26.0 30.0 34.0 38.0
22.0 24.0 28.0 32.0 36.0 40.0 44.0
35.0 37.0 41.0 45.0 49.0 53.0 57.0
螺纹长度b
- - - - - - -
