Hex Flange Locking nut

Hex Flange Locking nut

Keyword:

hex nut hex locking nut hex flange nut hex flange locking nut

Classify:

Nuts

Hotline：

+86 18865953895

Product consultation
Related products

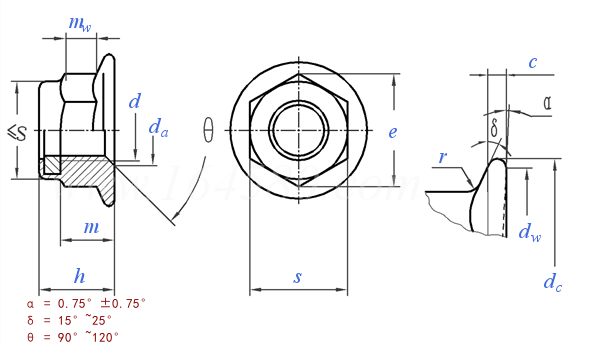

Product introduction

螺纹规格
D
M5 M6 M8 M10 M12 (M14) M16 M20
P 螺距
c 最小值
da 最大值
最小值
dc 最大值
dw 最小值
e 最小值
h 最大值
最小值
m 最小值
mw 最小值
s 最大值
最小值
r 最大值
千件重(钢制)≈kg
0.8 1 1.25 1.5 1.75 2 2 2.5
1.0 1.1 1.2 1.5 1.8 2.1 2.4 3.0
5.75 6.75 8.75 10.80 13.00 15.10 17.30 21.60
5.00 6.00 8.00 10.00 12.00 14.00 16.00 20.00
11.8 14.2 17.9 21.8 26.0 29.9 34.5 42.8
9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
8.79 11.05 14.38 16.64 20.03 23.36 26.75 32.95
7.1 9.1 11.1 13.5 16.1 18.2 20.3 24.8
6.52 8.52 10.4 12.8 15.4 16.9 19.0 22.7
4.7 5.7 7.64 9.64 11.57 13.3 15.3 18.7
2.5 3.1 4.6 5.6 6.8 7.7 8.9 10.7
8 10 13 15 18 21 24 30
7.78 9.78 12.73 14.73 17.73 20.67 23.67 29.16
0.3 0.4 0.5 0.6 0.7 0.9 1.0 1.2
1.66 3.36 7 11.15 19.33 29.21 43.24 78.44
