Product introduction

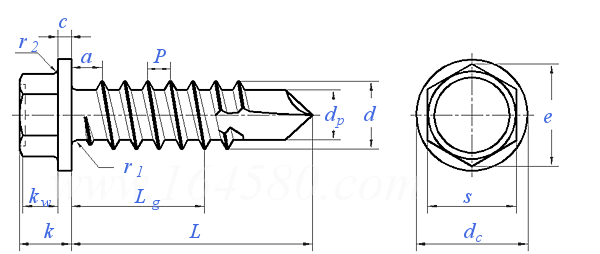

公称直径
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3
P 螺距
a 最大值
c 最小值
dc 最大值
最小值
e 最小值
k 最大值=公称
最小值
kw 最小值
r1 最小值
r2 最大值
s 最大值=公称
最小值
钻孔深度或钣金厚度 ≥
≤
1.1 1.3 1.4 1.6 1.8 1.8
1.1 1.3 1.4 1.6 1.8 1.8
0.4 0.6 0.8 0.9 1 1
6.30 8.3 8.8 10.5 11 13.5
5.80 7.6 8.1 9.8 10 12.2
4.28 5.96 7.59 8.71 8.71 10.95
2.80 3.4 4.1 4.3 5.4 5.9
2.50 3 3.6 3.8 4.8 5.3
1.3 1.5 1.8 2.2 2.7 3.1
0.1 0.1 0.2 0.2 0.25 0.25
0.2 0.25 0.3 0.3 0.4 0.5
4.00 5.5 7 8 8 10
3.82 5.32 6.78 7.78 7.78 9.78
0.7 0.7 1.75 1.75 1.75 2
1.9 2.25 3 4.4 5.25 6
Lg 最小值
- - - - - -
