Square head bolt Square head bolt Square head bolt Square head bolt

Square head bolt

Square head bolt

Keyword:

Square head bolt

Classify:

Square head bolt

Bolts and Screw

Hardware Products

Hotline：

+86 18865953895

Product consultation
Related products

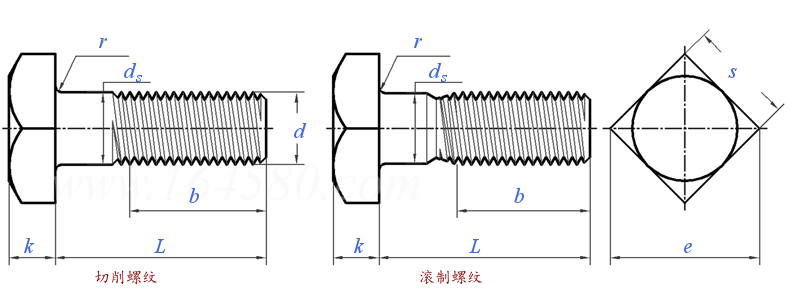

Product introduction

螺纹规格
d
1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
d
PP UNC
ds 最大值
最小值
s 公称
最大值
最小值
e 最大值
最小值
k 公称
最大值
最小值
r 最大值
最小值
b L≤6
L＞6
0.2500 0.3125 0.3750 0.4375 0.5000 0.6250 0.7500 0.8750 1.0000 1.1250 1.2500 1.3750 1.5000
20 18 16 14 13 11 10 9 8 7 7 6 6
0.260 0.324 0.388 0.452 0.515 0.642 0.768 0.895 1.022 1.149 1.277 1.404 1.531
0.237 0.298 0.360 0.421 0.482 0.605 0.729 0.852 0.976 1.098 1.223 1.345 1.470
3/8 1/2 9/16 5/8 3/4 15/16 1-1/8 1-5/16 1-1/2 1-11/16 1-7/8 2-1/16 2-1/4
0.375 0.500 0.562 0.625 0.750 0.938 1.125 1.312 1.500 1.688 1.875 2.062 2.250
0.362 0.484 0.544 0.603 0.725 0.906 1.088 1.269 1.450 1.631 1.812 1.994 2.175
0.530 0.707 0.795 0.884 1.061 1.326 1.591 1.856 2.121 2.386 2.652 2.917 3.182
0.498 0.665 0.747 0.828 0.995 1.244 1.494 1.742 1.991 2.239 2.489 2.738 2.986
11/64 13/64 1/4 19/64 21/64 27/64 1/2 19/32 21/32 3/4 27/32 29/32 1
0.188 0.220 0.268 0.316 0.348 0.444 0.524 0.620 0.684 0.780 0.876 0.940 1.036
0.156 0.186 0.232 0.278 0.308 0.400 0.476 0.568 0.628 0.720 0.812 0.872 0.964
0.03 0.03 0.03 0.03 0.03 0.06 0.06 0.06 0.09 0.09 0.09 0.09 0.09
0.01 0.01 0.01 0.01 0.01 0.02 0.02 0.02 0.03 0.03 0.03 0.03 0.03
0.750 0.875 1.000 1.125 1.250 1.500 1.750 2.000 2.250 2.500 2.750 3.000 3.250
1.000 1.125 1.250 1.375 1.500 1.750 2.000 2.250 2.500 2.750 3.000 3.250 3.500
①,当螺栓长度L小于表格中螺纹长度b值时，应按全螺纹加工。
